SPECIFICATIONS

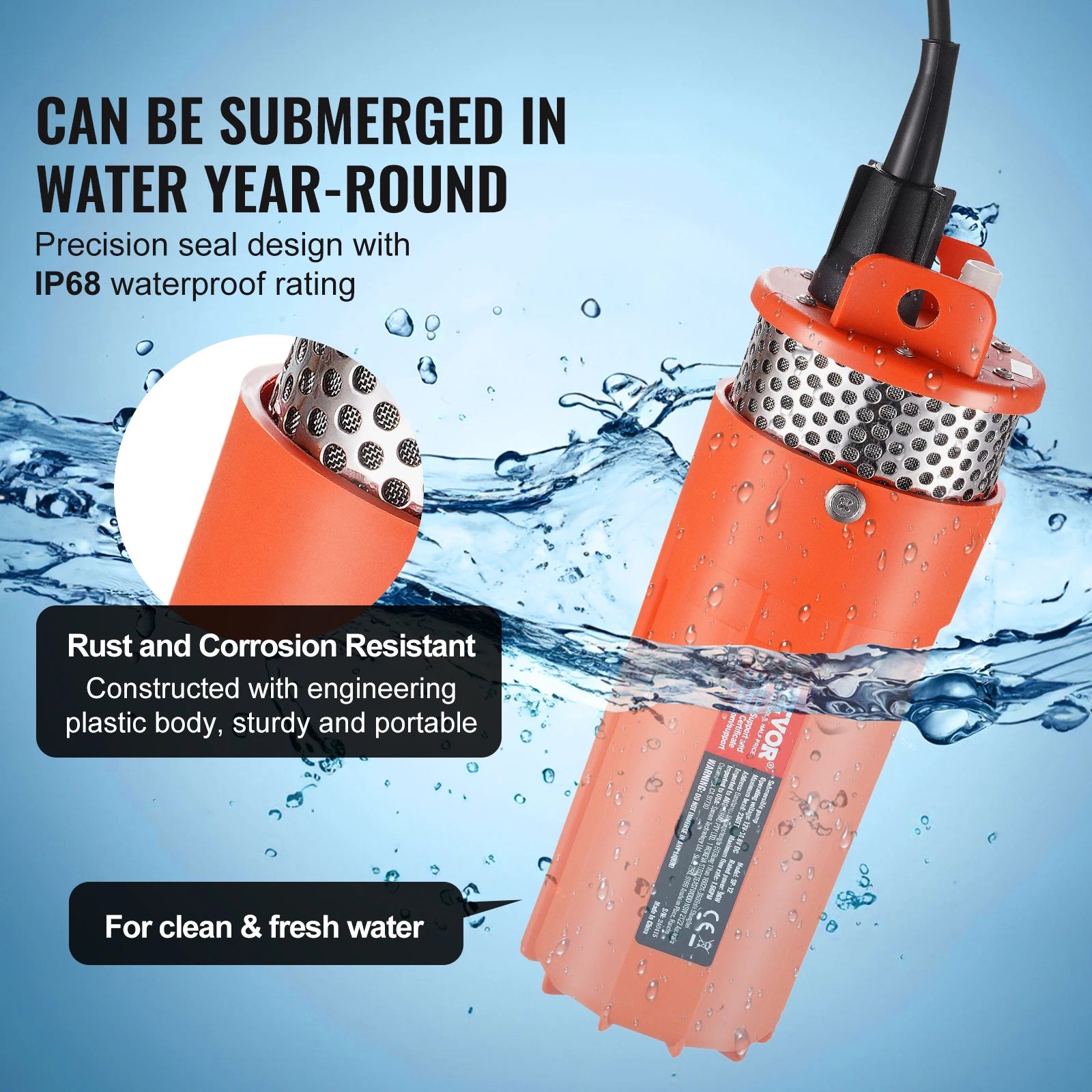

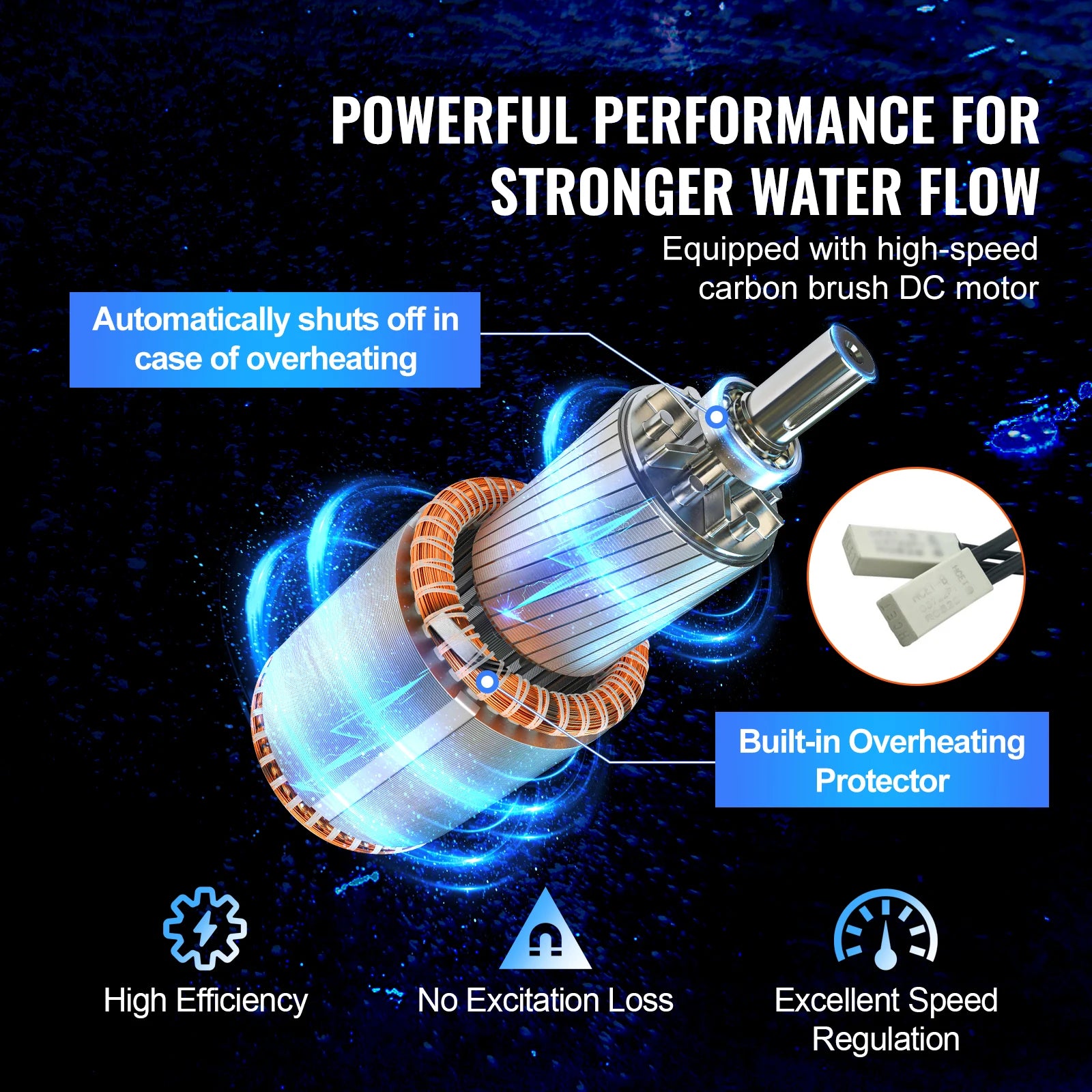

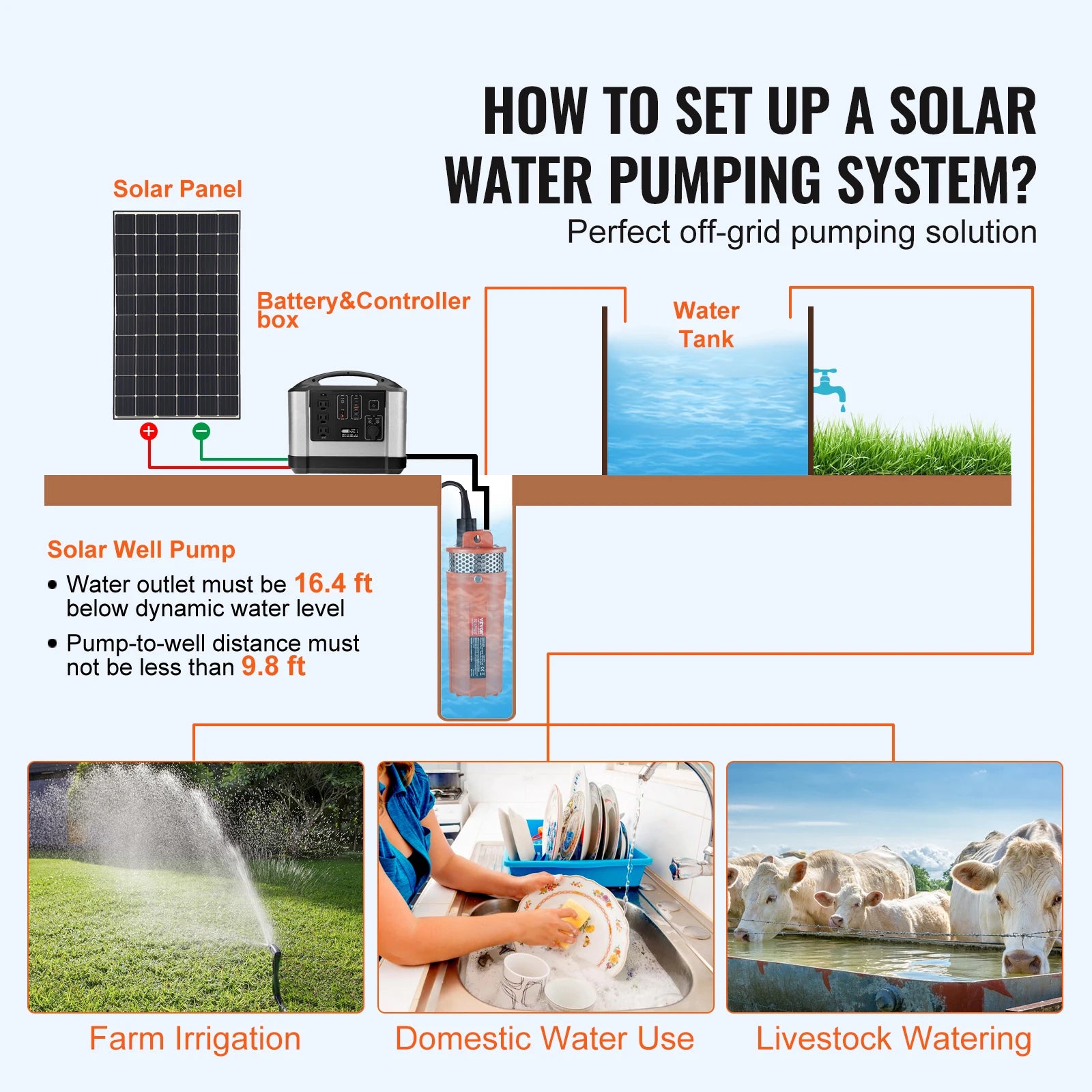

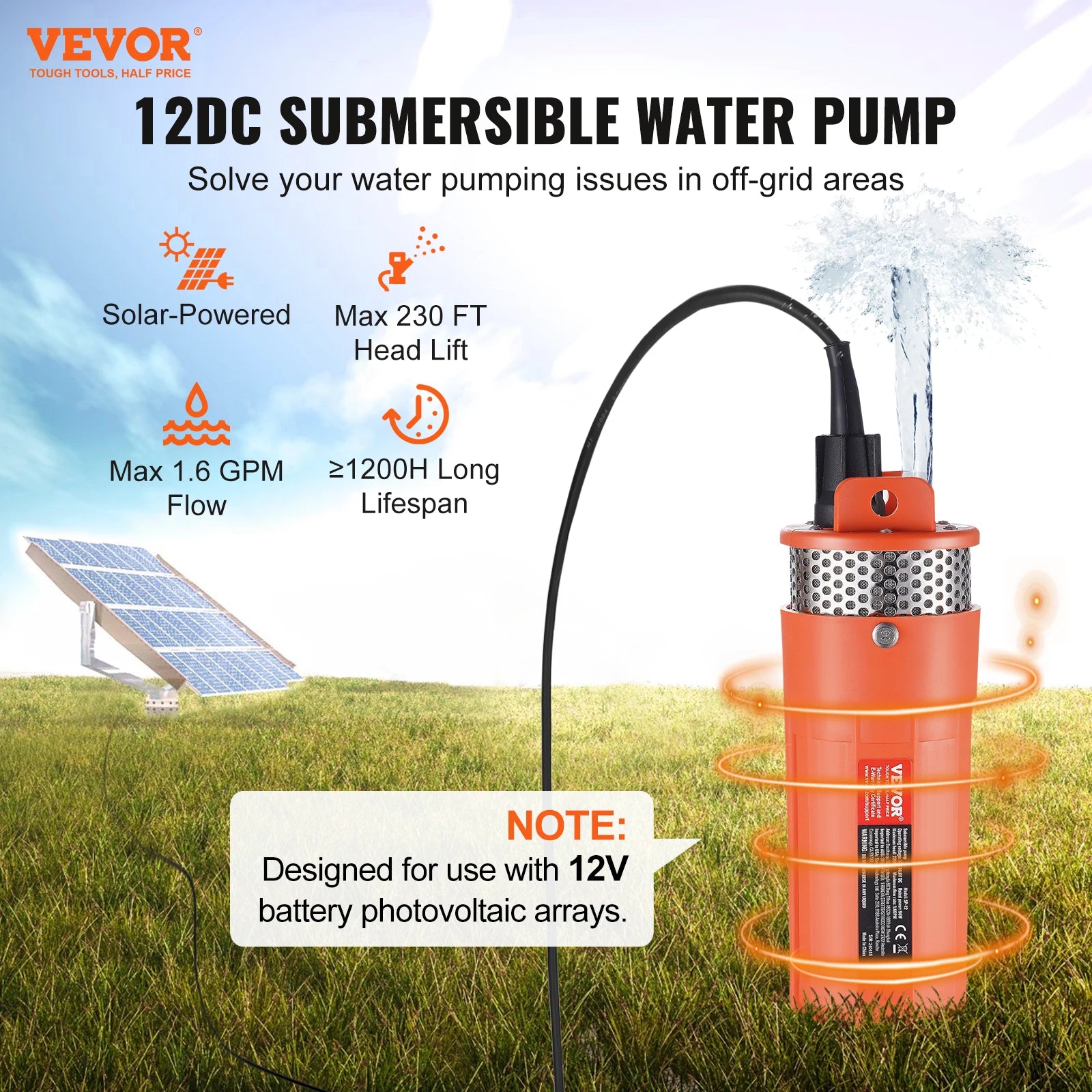

Solar Powered: Say goodbye to power supply limitations. Simply connect to a 12V battery pack and choose suitable solar panels for convenient use. Large Flow and High Head: With a 230 ft head and 1.6 GPM flow rate, it's ideal for medium-distance water transfer and can handle deep wells. IP68 Waterproof Rating: The excellent sealed pump body allows underwater work all year round. The filter mesh reduces clogging and extends the pump's life. High-Speed Motor: Equipped with a fast DC motor for efficient water drawing and delivery, ensuring high performance. Off-Grid Oasis: Suitable for wells over 4 inches, with a 10 ft power cord. You need to prepare other components for a complete system

Certification: CE

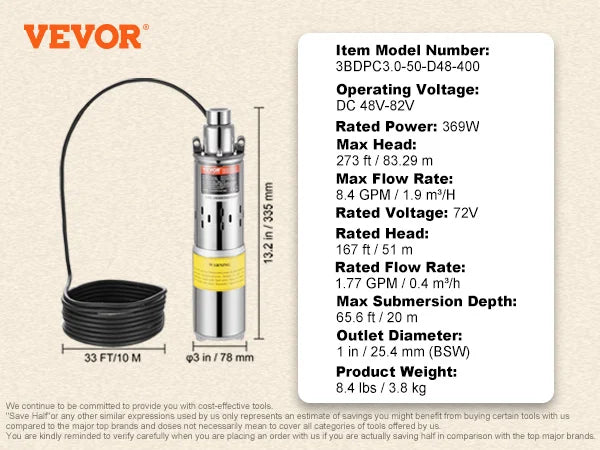

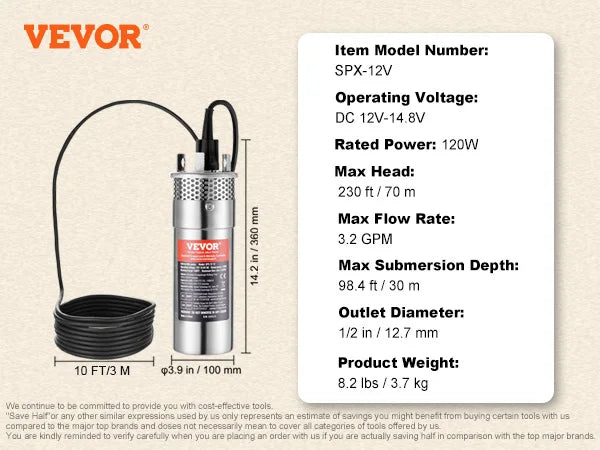

Item Model Number: SP-12 / SPX-12V / 3BDS2.0-50-D24-250 / 3BDPC3.0-50-D48-400

Max Flow Rate: 1.6 GPM / 3.2 GPM / 9.25 GPM / 8.4 GPM

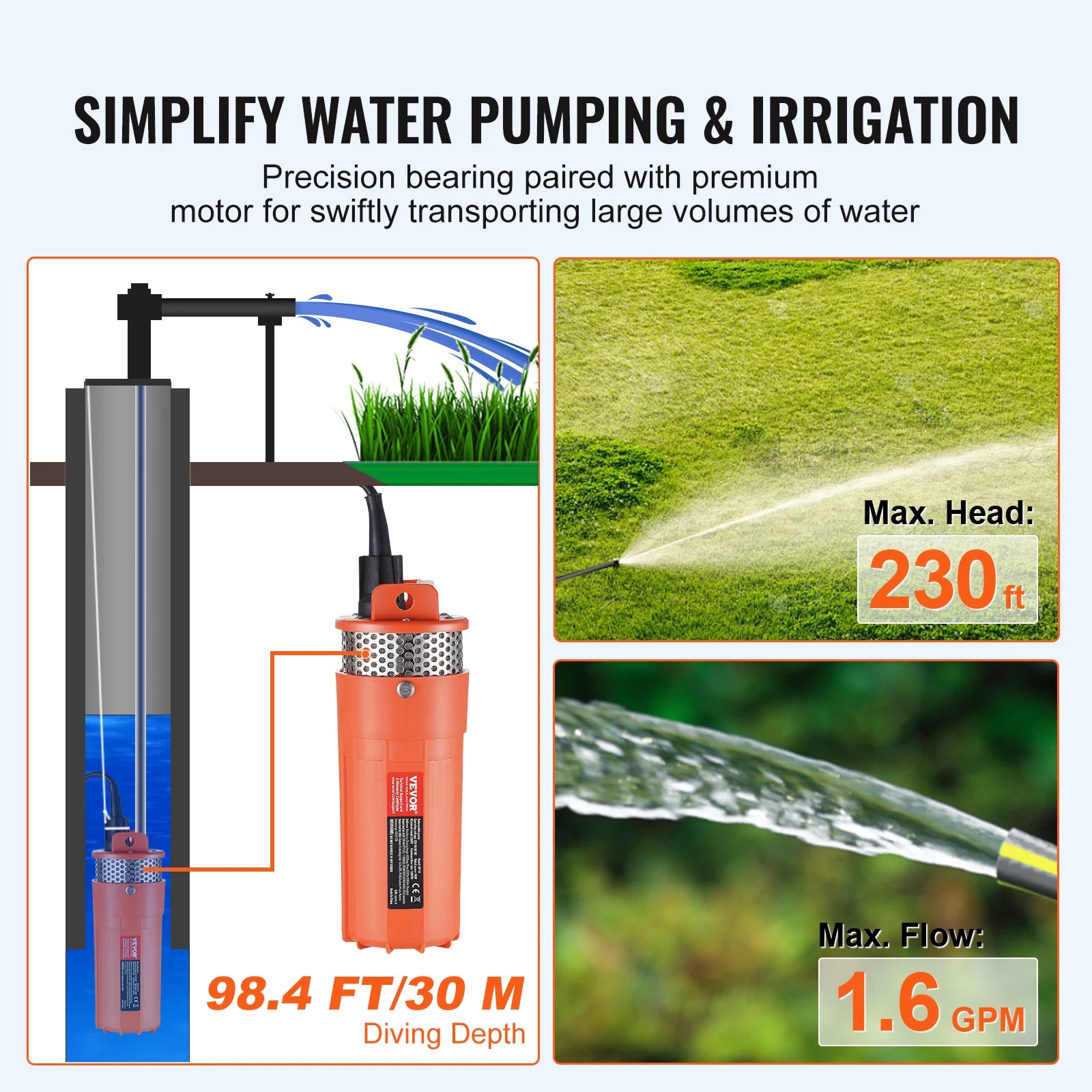

Max Head: 230 ft / 70 m, 230 ft / 70 m, 272 ft / 83 m, 273 ft / 83.29 m

Max Submersion Depth: 98.4 ft / 30 m, 98.4 ft / 30 m, 65.6 ft / 20 m, 65.6 ft / 20 m

Operating Voltage: DC 12V-14.8V / DC 12V-14.8V / DC 24V-42V / DC 48V-82V

Outlet Diameter: 1/2 in / 12.7 mm, 1/2 in / 12.7 mm, 1 in / 25.4 mm, 1 in / 25.4 mm (BSW)

Power (W): Electric

Pressure: High Pressure

Product Weight: 5.7 lbs / 2.6 kg, 8.2 lbs / 3.7 kg, 7.7 lbs / 3.5 kg, 8.4 lbs / 3.8 kg

Rated Power: 96W / 120W / 277W / 369W

Structure: Submersible Well Pump
